Online Thermal ink jet (TIJ) Printer
Thermal ink jet (TIJ) ONLINE PRINTER (Model No. G-100)
Thermal ink jet (TIJ) Online Printer (MODEL NO. G-210H)
Thermal ink jet (TIJ) Online Printer (MODEL NO. G-910)
Thermal ink jet (TIJ) Online Printer MODEL NO. G-127H
Thermal ink jet (TIJ) ONLINE PRINTER (Model No. G-100)
PRODUCT PARAMETERS
- Model: G-100H
- Printing height: 1-12.7mm
- Printing accuracy: 600DPI
- Printing distance: 2-5mm
- Printing speed: 0-50m/min
- Nozzle type: Thermal ink jet (TIJ) 2.5 Thermal Foaming Nozzle
- Screen size: 7-inch smart capacitive screen
- Body material: Industrial Aluminum
- Ink cartridge type: Solvent-based ink/42ml, Water-based ink/42ml Controller size: 210*110*40mm
- Printing content: Text, Time, Count, Logo, Variable barcode/QR code, Serial Number, etc.
- Printing materials: Cardboard, Plastic, Metal, Cables, Pipes, Glass, Electronic Components, etc.
- Ink cartridge color : Black, Red, Blue, Green, Yellow, White, Invisible ink (UV light readable)
- Ink cartridge chip: RFID non-contact chip, automatic identification of optimal ink parameters
- Support languages: Chinese, English, Italian, Russian, French, Spanish, Portuguese, Arabic, German, Japanese, Korean, Thai, etc.
- Power adapter: 100-240V AC INPUT, 17V/2A DC OUTPUT
- Working environment: Temperature 0-45 °C/Humidity 30-70%RH
- External interface: HDMI cable interface, Photoelectric sensor interface, Encoder interface, USB interface

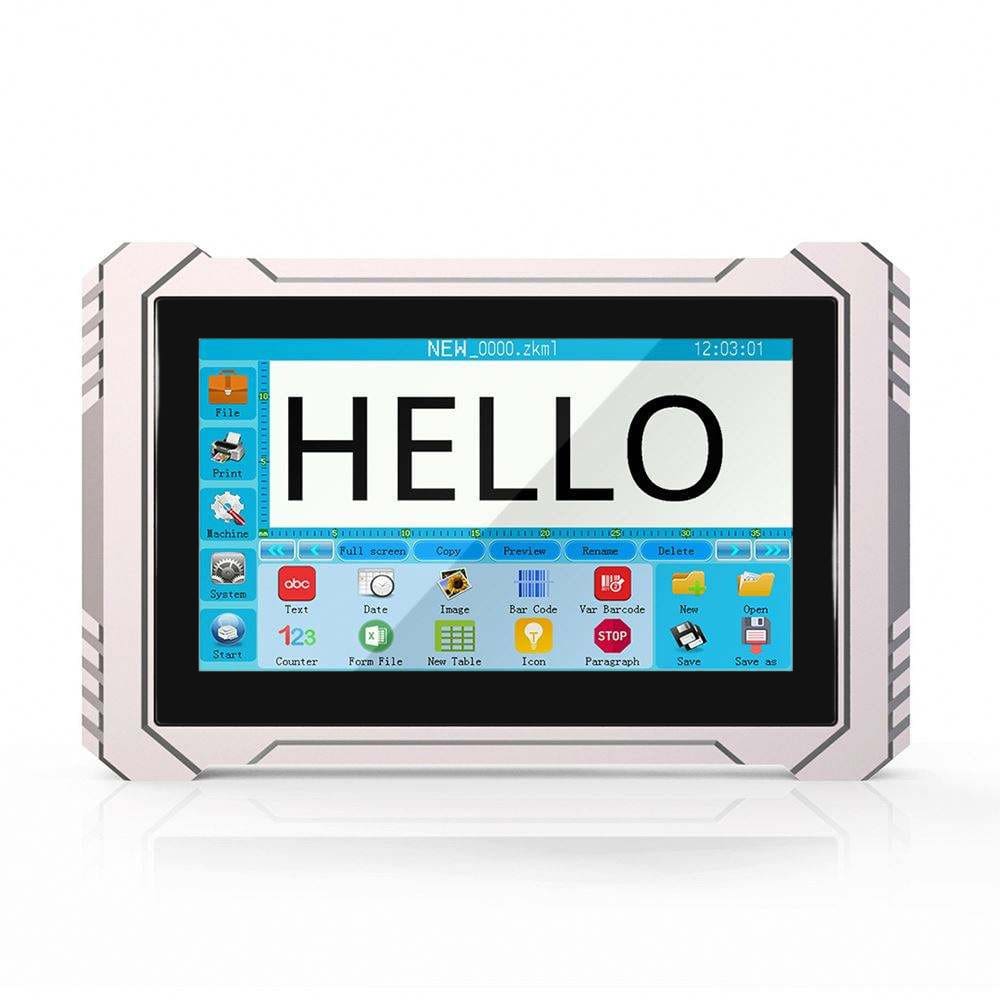

G-5505H Thermal ink jet (TIJ) Printer
110M PER MINUTE HIGH SPEED PRINTING, With an intelligent operating system, improving the work efficiency of jet printing,

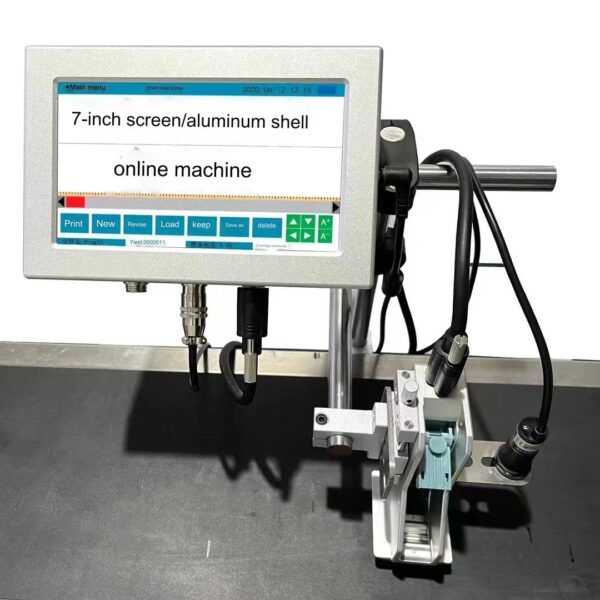

Thermal ink jet (TIJ) Online Printer (MODEL NO. G-210H)
PRODUCT PARAMETERS
- Operate The Screen: A10-inch capacitive touchscreen
- Spray Printing Distance: 2-5Mm is best
- Spray Printing Speed: 208M/min, 1-8-fold regulation
- Spray Printing Technology: HpTJ2.5 Hot foaming inkjet technology, resolution up to 600 dpi
- The Operation System: Development is based on the android system
- Protocol: All the clear code protocol is adopted to facilitate the system integration and secondary development
- Long Date Format: The date mode is flexibly set and the format can be customized
- Rated Voltage : 110V/220v50/60hz
- Plant Maintenance: Automatic cleaning, maintenance-free
- Support Bar Code : Codel28, Code39, Ean8, Fan13, Fan128, Upca, Upce, Int25, hfl4. Code93, Pdf417, Qr. Datamatrix, Grid matrix, GSI Rss14, GSI Rss14ex. GSI Rss14 limited. GSI Rss14 truncates. GSI Ean128, GSI Rss14 stacked. GSI Rss14 stacked ex, GSI Rss14 stacked Omni, GSI Dm
- Operating System (Os): A head, free collocation can be separated or combined to use, half inch 1-50.4Mm, one inch 1-100,8Mm.
- Spithead Features: The single nozzle can edit the content independently, or combine the content between any nozzle
- Operating Language: Chinese, English, Japanese Arabic French, Korean, Italian, Spanish, Turkish, Russian, And Other Multinational Languages
- Information Input: U disk imports external data, machine network cable connection can be connected with the computer, mobile phone real-time, data transmission
- Peripheral Interface: Photoelectric, encoder, alarm, USB, network port, UV lamp interface
- Install Standard optical fiber and support, customers can freely combine installation, optional encoder, fine-tuning

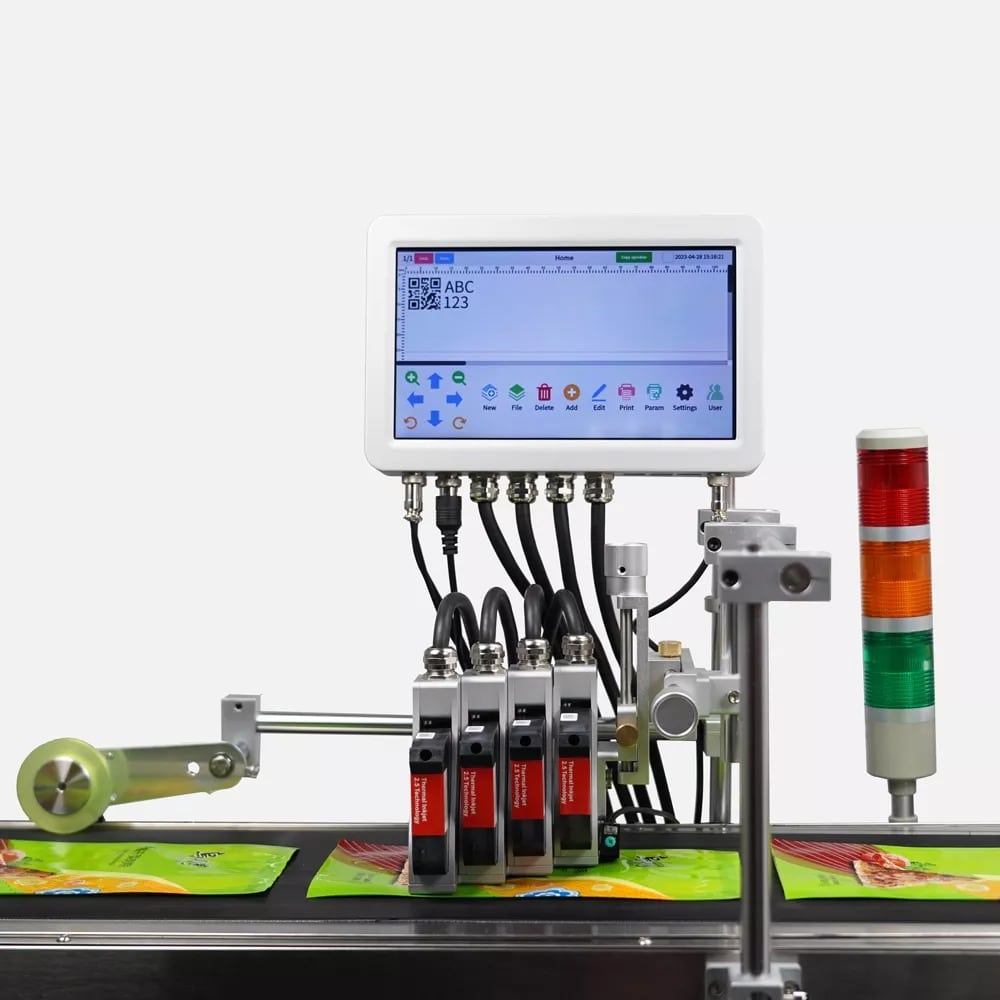

Thermal ink jet (TIJ) Online Printer (MODEL NO. G-910)
PRODUCT PARAMETERS
- Screen: 10 inch capacitive screen (1024*600px)
- QTY of print heads: 1-4
- Printhead cables: 1.5m or customs, max is 8m
- PC software format: MS excel, ms access, SQL2000, SQL2005,SQL2008
- Ink cartridge types: half inch and one inch, solvent based, water based, oil based
- Print height: use half inch cartridge: 12.7-50mm, use one inch 25.4-100mm Print speed: fix data: 120m/min (300*300dpi, grey level1)
- Resolution: 300dpi • Grey level: -2 to 6,total 8 levels
- Throw distance: 2-5mm • Image format: jpg/png/bmp/css/web
- Table format: xls/.xlsx/.csv/.txt • Variable data format: csv/txt/xls/xlsx
- variable data: 75m/min (3 kinds of varialbe datas: QR code conter+time)
- Extenal connection: power supply/print heads/encoder/sensor/alarm light/USB/RS232 LAN
- Print content:text/variable data/date & time/batch/counter/barcode/QR code/GS1/ logo/ Database/real-time data etc
- Font: can be added freely, support TTF/OTF/TTC format
- Codes: Code39/code128/UPCA/EAN8/EAN13/Data Matrix/EAN14/UPCE/INT25 ITF14/Code93/ PDF417/Grid/Matrix/Code11/Code39+/Codel6k/Code49 Flattermarken/VIN/NVE-18/Micro PDF417/ Micro QR code/GS1 DataBar-14 GS1 DataBar-EXP/GS1 DataBar-Ltd/GS1 DataBar-Stack/GS1 DataBar-Stack Omni/GS1 DataBar-Exp-Stack/GS1 EAN128/GS1-DM/GS1-QRcode/
- Aztec Code,can be added according
- Date format: can be customs by yourself, Julian year/Julian day
- System of numeration: Binary system/Octal/decimalism/hexadecimal Protocol/Network port protocol Serial port protocol (RS232)
- Operation system: Android CPU: Quad-core processor 1.5GHz
- Storage capacity: 32G EMMC memory card, 12G capacity storage for user Ink management: Automatically calculates left ink, and how many prints can do. Which for estimating cost.
- User management: add different users and assign them with different operations Electrical supply: Input: AC100-240V,50/60Hz Output: 32V/3A (single head) or 32V/5A (2-4heads) • Operation Temperature: 0-45°C (32-113°F) • Humidity: 20-80%RH
- Specification subject to change without notice

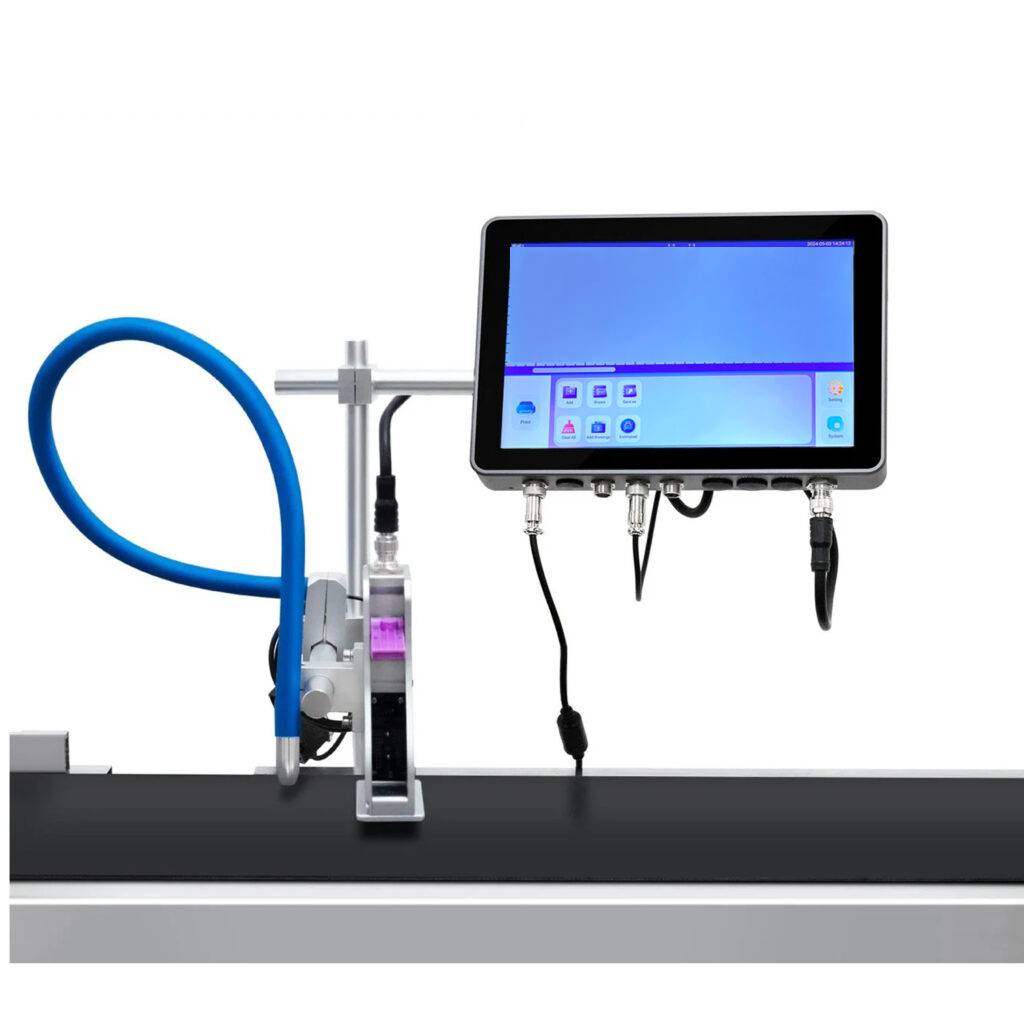

Thermal ink jet (TIJ) Online Printer MODEL NO. G-127H
PRODUCT PARAMETERS
- Operate The Screen: A10-inch capacitive touchscreen
- Spray Printing Distance: 2-5Mm is best
- Spray Printing Speed: 208M/min, 1-8-fold regulation
- Spray Printing Technology: HpTJ2.5 Hot foaming inkjet technology, resolution up to 600 dpi
- The Operation System: Development is based on the android system
- Protocol: All the clear code protocol is adopted to facilitate the system integration and secondary development
- Long Date Format: The date mode is flexibly set and the format can be customized
- Rated Voltage : 110V/220v50/60hz • Plant Maintenance: Automatic cleaning, maintenance-free
- Support Bar Code : Codel28, Code39, Ean8, Fan13, Fan128, Upca, Upce, Int25, hfl4. Code93, Pdf417, Qr. Datamatrix, Grid matrix, GSI Rss14, GSI Rss14ex. GSI Rss14 limited. GSI Rss14 truncates. GSI Ean128, GSI Rss14 stacked. GSI Rss14 stacked ex, GSI Rss14 stacked Omni, GSI Dm
- Operating System (Os): A head, free collocation can be separated or combined to use, half inch 1-50.4Mm, one inch 1-100,8Mm.
- Spithead Features: The single nozzle can edit the content independently, or combine the content between any nozzle
- Operating Language: Chinese, English, Japanese Arabic French, Korean, Italian, Spanish, Turkish, Russian, And Other Multinational Languages
- Information Input: U disk imports external data, machine network cable connection can be connected with the computer, mobile phone real-time, data transmission
- Peripheral Interface: Photoelectric, encoder, alarm, USB, network port, UV lamp interface
- Install Standard optical fiber and support, customers can freely combine installation, optional encoder, fine-tuning
Thermal ink jet (TIJ) ONLINE PRINTER MODEL NO. G-80
PRODUCT PARAMETERS
- Model: G-80H
- Printing height: 2-12.7mm
- Printing accuracy: 600DPI
- Printing distance: 2-5mm
- Ink cartridge type: Solvent-based ink/42ml, Water-based ink/42ml
- Nozzle type: Thermal ink jet (TIJ) 2.5 Thermal Foaming Nozzle Settings Shutdown
- Screen size: 5-inch smart capacitive screen
- Body material: Industrial Aluminium
- Printing speed: 0-50m/min
- Printing content: Text, Time, Count, Logo, Variable barcode QR code, Serial Number, etc.
- Printing materials: Cardboard, Plastic, Metal, Cables, Pipes, Glass, Electronic Components, etc.
- Ink cartridge color: Black, Red, Blue, Green, Yellow, White, Invisible ink (UV light readable)
- Support languages: Chinese, English, Italian, Russian, French, Spanish, Portuguese, Arabic, German, Japanese, Korean, Thai, etc.
- External interface: HDMI cable interface, Photoelectric sensor interface, USB interface
- Power adapter: 100-240V AC INPUT, 17V/2A DC OUTPUT
- Working environment: Temperature 0-45 °C/Humidity 30-70%RH
